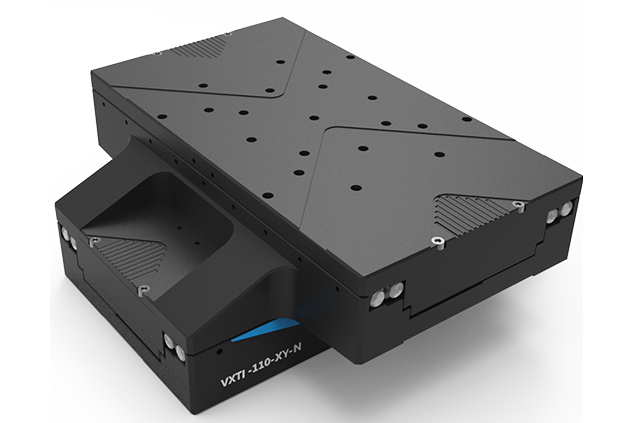

VXT130-XY Series
具有高度集成化的XY直線電機納米平臺
具有納米級性能并且行程較長
高分辨率（1nm），高重復定位精度（75nm）和高定位精度（250nm）
運動誤差小，穩定精度高
具有抗蠕變特性
|
Mechanical Specifications |
VXT130-060-XY-N |
VXT130-060-XY-P |
VXT130-110-XY-N |
VXT130-110-XY-P |
|
|
Travel |
60 mm |
60 mm |
110 mm |
110 mm |
|
|
Accuracy |
±2.5 μm |
±250 nm |
±4 μm |
±300 nm |
|
|
Resolution |
1 nm |
1 nm |
1 nm |
1 nm |
|
|
Repeatability (Bi-Directional) |
±100 μm |
±75 nm |
±100 nm |
±75 nm |
|
|
Repeatability (Uni-Directional) |
±25 nm |
±25 nm |
±25 nm |
±25 nm |
|
|
Straightness & Flatness |
±1 μm |
±1 μm |
±1.5 μm |
±1.5 μm |
|
|
Pitch |
10 arc sec |
10 arc sec |
12 arc sec |
12 arc sec |
|
|
Yaw |
5 arc sec |
5 arc sec |
6 arc sec |
6 arc sec |
|
|
Orthogonality |
10 arc sec |
3 arc sec |
10 arc sec |
3arc sec |
|
|
Maximum Speed |
350 mm/s |
350 mm/s |
350 mm/s |
350 mm/s |
|
|
Maximum Acceleration (No Load) |
10 m/s2 |
10 m/s2 |
10 m/s2 |
10 m/s2 |
|
|
In-Position Stability |
<1 nm |
<1 nm |
<1 nm |
<1 nm |
|
|
Maximum Force (Continuous) |
22 N |
||||
|
Load Capacity |
Horizontal |
10 kg |
|||
|
Moving Mass |
Upper |
1.6 kg |
1.6 kg |
2.2 kg |
2.2 kg |
|
Lower |
4.3 kg |
4.3 kg |
5.8 kg |
5.8 kg |
|
|
Stage Mass |
5.6 kg |
5.6 kg |
7.8 kg |
7.8 kg |
|
|
Material |
Aluminum Body/Black Hardcoat Finish |
||||
|
MTBF(Mean Time Between Failure) |
20,000 hours |
||||
|
Mechanical Specifications |
VXT130-160-XY-N |
VXT130-160-XY-P |
|
|
Travel |
160 mm |
160 mm |
|
|
Accuracy |
±5 μm |
±30s0 nm |
|
|
Resolution |
1 nm |
1 nm |
|
|
Repeatability (Bi-Directional) |
±100 nm |
±75 nm |
|
|
Repeatability (Uni-Directional) |
±25 nm |
±25 nm |
|
|
Straightness & Flatness |
±2 μm |
±2 μm |
|
|
Pitch |
15 arc sec |
15 arc sec |
|
|
Yaw |
8 arc sec |
8 arc sec |
|
|
Orthogonality |
10 arc sec |
3 arc sec |
|
|
Maximum Speed |
350 mm/s |
350 mm/s |
|
|
Maximum Acceleration (No Load) |
10 m/s2 |
10 m/s2 |
|
|
In-Position Stability |
<1 nm |
<1 nm |
|
|
Maximum Force (Continuous) |
22 N |
||
|
Load Capacity |
Horizontal |
10 kg |
|
|
Moving Mass |
Upper |
2.5 kg |
2.5 kg |
|
Lower |
7.0 kg |
7.0 kg |
|
|
Stage Mass |
9.0 kg |
9.0 kg |
|
|
Material |
Aluminum Body/Black Hardcoat Finish |
||
|
MTBF(Mean Time Between Failure) |
20,000 Hours |
||
